Four-Slide & Multi-Slide Stampings

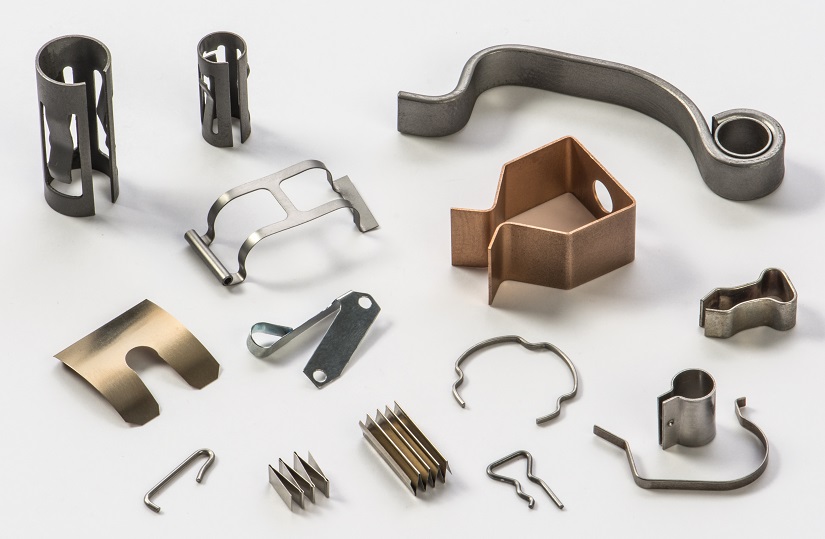

Associated Spring's custom-designed four-slide, multi-slide stampings and wire forms are produced in high & low volumes with multiple, complex configurations that are utilized in a wide range of applications. Our precise solutions include:
- Braces
- Brackets
- Connectors
- Cotter & Retaining pins
- Fasteners
- Hangers
- Hinges
- Latches
- Spring clips
We can custom-design and manufacture complex four-slide, multi-slide stampings and wire forms using various material grades, sizes & sections (both wire & flat) to meet your specifications that optimize both performance & life-cycle costs.
Four-Slide and Multi-Slide Stampings Material Grades:
- Carbon & Alloy Steel - oil tempered medium basic, hard drawn medium basic, music wire & oil tempered chrome silicon
- Stainless Steel
- Non Ferrous - Phosphor Bronze, Beryllium Copper
Cross Sections:
- Flat Strip
- Round Wire
- Rectangular/Shaped Wire
Size Ranges:
- Strip widths - up to 2.5"
- Diameter/thickness range - .010" to .312"
This product line of engineered precision parts services the Transportation, Aerospace, Automotive, Medical, Industrial, Durable/Commercial Goods and Electronics markets.
Our global plants are third-party certified to AS9100, ISO9001 or TS16949 and ISO 14001 depending on the markets serviced.
How to Specify:
A blueprint or sketch is the best way to specify your custom component. Consultation with Associated Spring engineers early in the design stage will often result in considerable cost savings. Also, minor changes in part design can often facilitate manufacture on automatic machinery, as well as reduce tool costs.
